CircuitWorks Thermal Paste
CircuitWorks® Thermal Paste facilitates heat transfer away from electrical/electronic components. This heavy consistency material is thickened with a heat conductive filler to maintain a positive heat sink seal in electrical/electronic equipment.

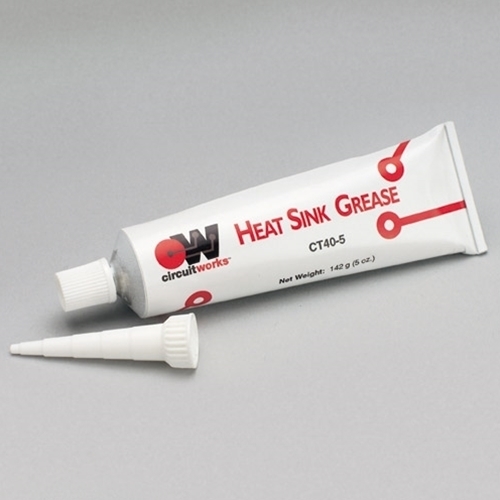

Heat Sink Grease (CT40-5)
- Silicone-base
- Thermally stable from -52º F (-46º C) to 603º F (317º C)
- Meets MIL-DTL-47113D Type I

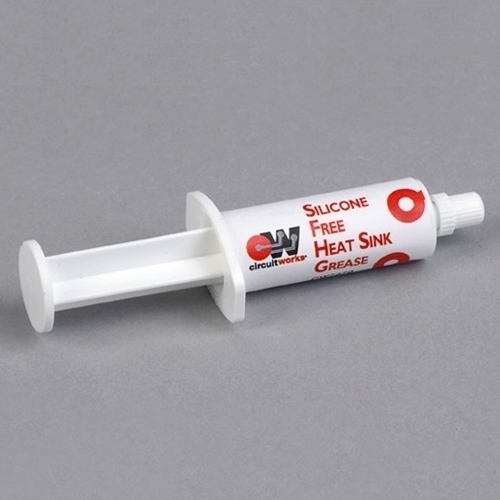

Silicone Free Thermal Paste (CW7270)
- Silicone free compound avoids silicone migration
- Thermally stable from 5ºF/-15ºC to 392ºF/200ºC
- Exceeds MIL-C-47113 for thermal conductivity

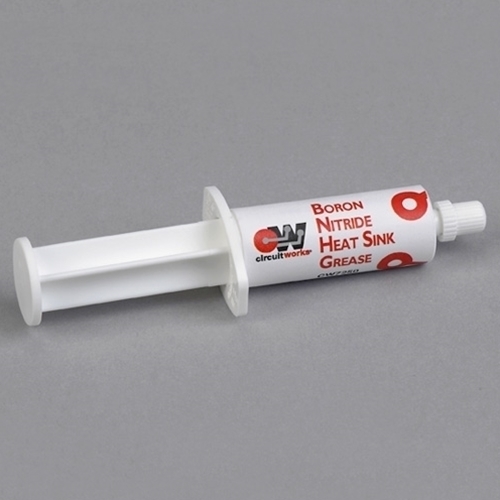

Boron Nitride Thermal Paste (CW7250, CW7250KG)
- Provides maximum thermal conductivity with superior dielectric properties
- Silicone free compound will not harden or dry out
- Thermally stable from -99ºF/-73ºC to 392ºF/200ºC
- Exceeds MIL-C-47113 for Thermal Conductivity
Features & Benefits
- Facilitates heat transfer between circuit components and heat sinks
- Excellent thermal and dielectric properties
- Will not dry out, harden, or melt
- Noncorrosive and nonflammable
| Specifications |
MIL-DTL-47113D ANSI/IPC J STD-001, IPC-7711 |
|---|
Shelf Life5 yrs.Shipping NameAdhesives N.O.I
