Spot Cleaning Flux Residues Using BrushClean™ System

Chemtronics® manufactures a large variety Flux-Off® brand solder flux residue removers to satisfy many different requirements, for example if the  cleaner needs to be nonflammable, safe on sensitive plastics, or have extra cleaning strength. Many Flux-Off cleaners are available with the  BrushClean™ system with allows for controlled application of solvent.

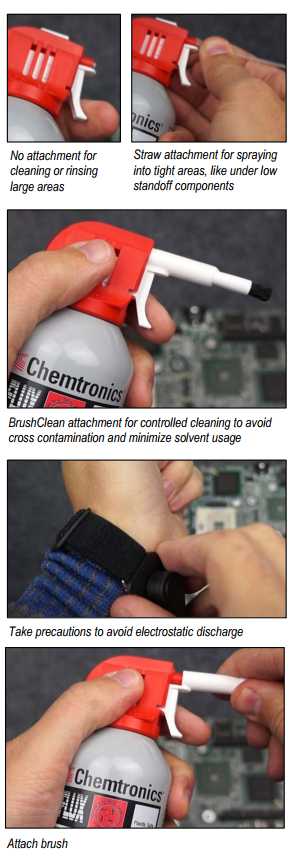

When a large area needs to be cleaned or rinsed, the trigger sprayer can be used without any attachment. For spraying into tighter areas, like under  low standoff components, the straw attachment can be used. The BrushClean system allows you to clean in a more controlled way, avoiding cross  contamination and preventing solvent from reaching sensitive components and coatings. It also minimizing solvent usage.

Each BrushClean can comes with a fresh brush. Choose the FluxOff® flux remover according to the flux you are trying to remove and other application requirements. For help, contact your Chemtronics® representative or go to www.chemtronics.com.

Chemtrnics® Coventry™ brand consists of a variety of swabs and wipers dedicated to precision cleaning of sensitive electronics. The 4” x 4” (10.2cm  x 10.2cm) Coventry Econowipe™ (part #6704) is a polyester-cellulose lint-free wiper that is ideal for use in combination with the BrushClean system  because it is both strong and absorbent. For areas that are more likely to tear the wipe and create particulates, like the underside of a through-hole  PCB, use either the Chemtronics Twillwipes™ (C900) or Coventry Poly-Wipes (6209).

There is a common misconception that you can spray flux residues or swab with isopropyl alcohol and the contamination will evaporate with the  solvent. What actually happens is the solvent evaporates but leaves the residue behind. This might hide the problem, since the flux is spread over a  wider area, but the potential for corrosion and dendritic growth from ionic contamination hasn’t changed. Using a wipe in combination with the brush  allows you to not only break down and dissolve the No attachment for cleaning or rinsing large areas Straw attachment for spraying into tight areas,  like under low standoff components BrushClean attachment for controlled cleaning to avoid cross contamination and minimize solvent usage Take  precautions to avoid electrostatic discharge flux residues, but also remove them from the PCB surface

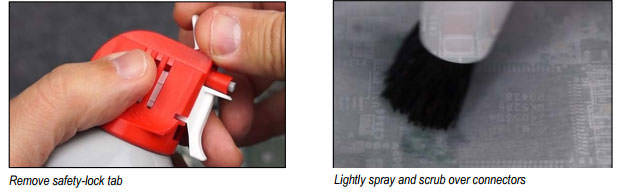

Before you start, take necessary precautions to avoid electrostatic discharge, like a grounded wrist-strap. Next attach the brush to end of the spray  nozzle and remove the plastic safety-lock tab.

To use a Flux-Off flux remover with a BrushClean system, place the wipe over component connectors to be cleaned. Lightly spray or dribble out a  small amount of solvent while pressing down on the wiper firmly with the brush. Move around or scrub with the brush over the wipe to provide  addition agitation. Shortly you will see the solvent with the dissolved flux wick up into the wipe. Repeat this step for each side of the component,  moving to a fresh part of the wipe each time. CLICK HERE FOR FLUX REMOVER SELECTION GUIDE

BrushClean System Apllication Guide
